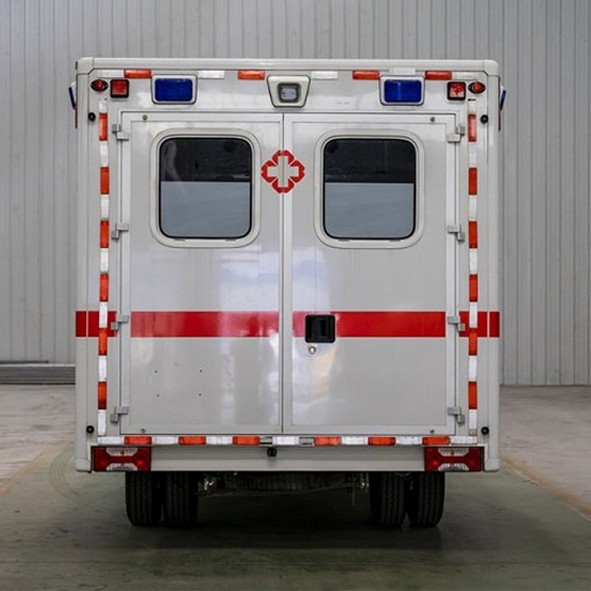

Shelter negative pressure ambulance

It is a Shelter negative pressure ambulance designed to transport medical, injured or sick people to hospital and provide medical care to patients at a distance and emergency care to people with acute medical problems. Compared with other ambulances, "cabin ambulance" is different, it has a more spacious space, the cabin can be loaded with more abundant emergency treatment equipment, is essential to the medical departments of the patient transfer treatment tool.

Send Inquiry

Product Description

Shelter negative pressure ambulance presentation

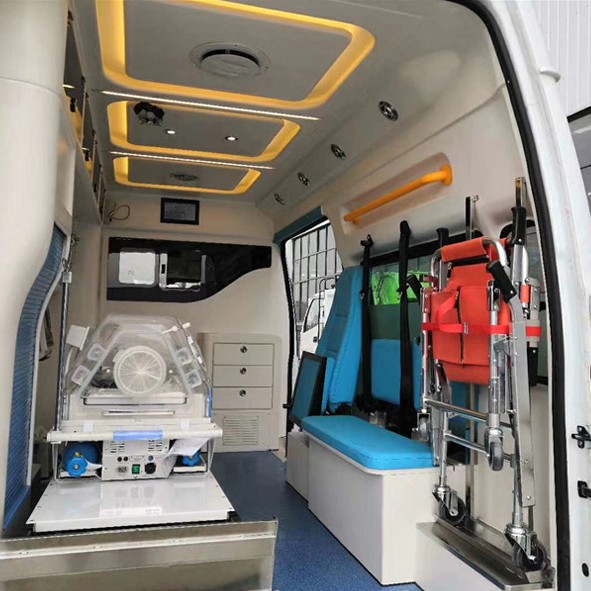

As a means of transport for patients, ambulances need to be not only fast but also safe and reliable. Our cabin ambulance has a full range of safety features, such as lane departure warning system LDWS, to avoid unintended lane departure; TPMS active tire pressure warning system, real-time monitoring of tire health; Power plus braking system, stable and timely braking; Bosch ESP 9.0 electronic body stabilization system ensures patient escort along the way. The modification of the cabin structure, the introduction of the concept of streamline modeling of the rv, with inclined multi-point high light LED flash lamp, imported aluminum alloy medical cabin, beautiful and generous, unique shape, the use of professional closed cabin design, physical isolation from the medical cabin and the cab. The internal layout of the medical cabin is scientific and reasonable, adopting the international mainstream three-zone design for medical care, integrating the operation habits of medical staff, equipped with quick equipment brackets, adhering to the one-arm operation concept, and reasonably distributing the functional areas in the cabin.

Product parameters

Curb   weight(kg) 2540
Axle loading(kg) 1560/1935
Overall   dimension(mm) 5965×2270×3080
Medical  treatment  cabin  dimension(mm) 3350×2020×1830
Approach/departure  angle(”) 20/25
Max  speed  (km/h) 156
Front/Rear  overhang  (mm) 1014/1027
Color According to customer' s request
Chassis Parameters
Chassis   name Ford,JMC jinbei,other famous brand
Number of axles 2
Wheel    base(mm) 3300
Cabin  seats 6passengers
Gear   box 6speed,5forward   1rear
Number  of  wheels 2
Tire specification 215/75R16LT
Front Track  (mm) 1736
Rear Track  (mm) 1720
Engine Parameters
Engine   model DURATORQ4D205L
Engine  type 2.0T, four-cylinder, supercharged intercooled, high pressure common rail
Drive type 4*2,Left hand drive
Emission  standard Euro   5
Displacement  (ml) 1998ml/121kw
Power  horse(hp) 165
Fuel  Type Diesel
Configurations Instruction
Warning   system Warning light,alarm and flash lights
Power   system 1000W positive wave inverter system
Integrated circuit integrated control protection system
Ac circuit protection system
Integrated switch control panel for medical module
GB 220V power port,Disinfecting lamp,Ventilator,Intercom
Oxygen  pathway  and  oxygen Two 10-liter medical oxygen bottles with shock absorbing clamp,concealed oxygen piping system,two oxygen ports,one humidifier
Medical  cabin Polymer hard top:polymer material partition wall;long hanging cabinet and medical equipment and storage cabinet;Vertical oxygen
tank cabinet;full set of blue anti-collision soft cover walls
Seats 1PCS Reverse soft roll seat,1PCS Independent seat with backrest,1PCS long soft roll seat for 2 person
Emergency auxiliary Stretcher pad and guide plate,1pcs slideable infusion rack,fire extinguisher
Appearances Black solar membrane on left side,translucent frosting film on right and rear side

Product features and applications

The ambulance adopts negative pressure body device, with multiple sterilization and purification inside, which can achieve more than 99.99% filtering effect for 0.3 micron aerosol particles. Its high static pressure and large air volume fan can reach 510 cubic meters/hour, and the standard negative pressure value can be quickly reached in 3 seconds in the medical cabin. The air flow in the cabin follows the principle of "from right to left, up and down", and is forced to form a concentrated directional flow of strong pressure gradient field. Air particles queue up in accordance with the step pressure rules and flow into the purification system layer by layer, which fully protects the personal safety of medical staff.

Product details

Company size

Delivery of shipments and services


Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.

Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.

Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.

Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).

Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.

Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).

Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).

Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.

Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.

Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.

Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
