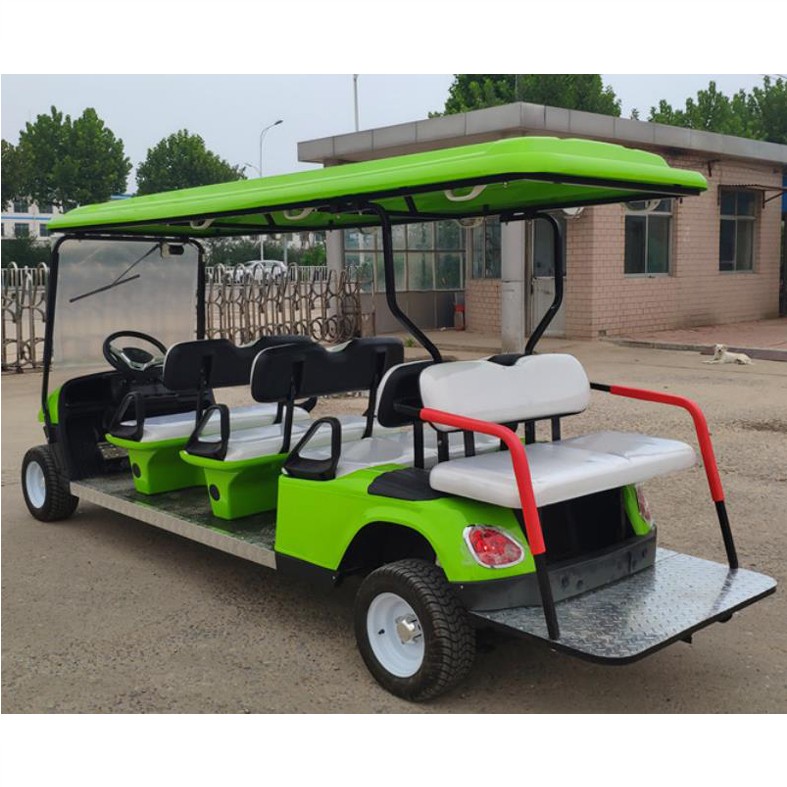

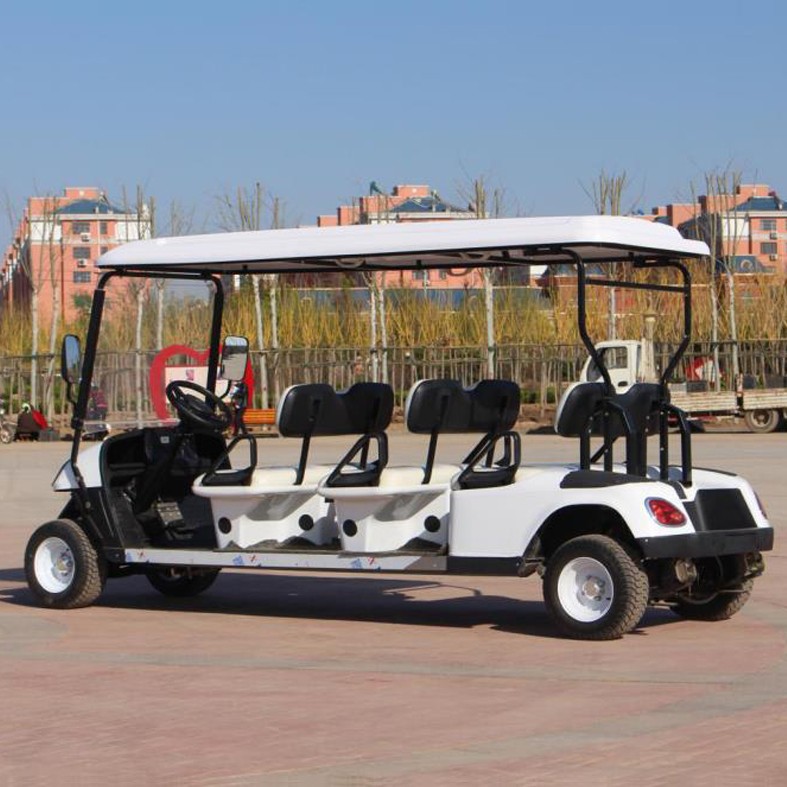

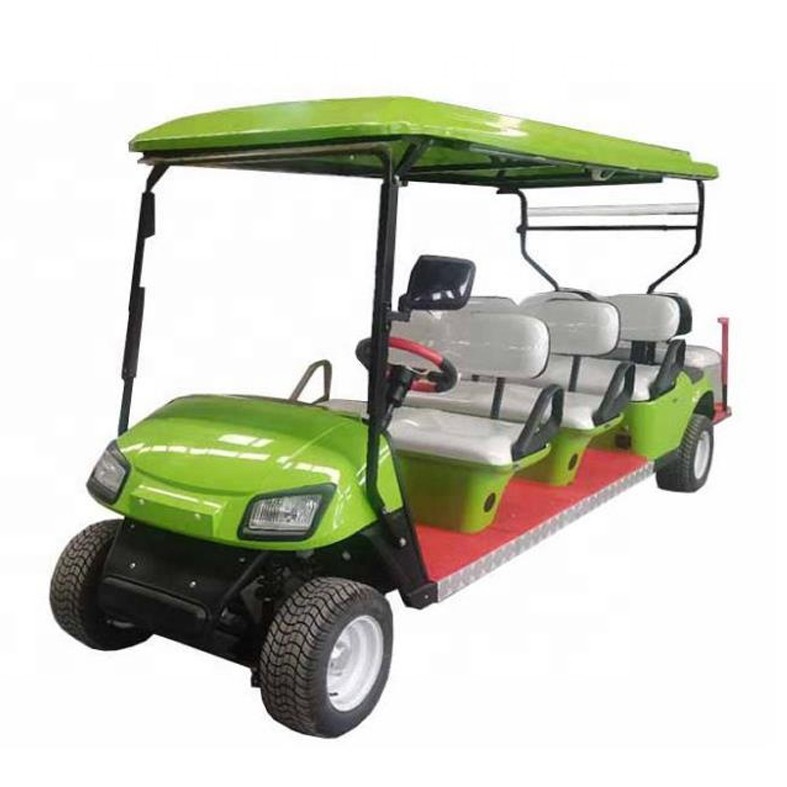

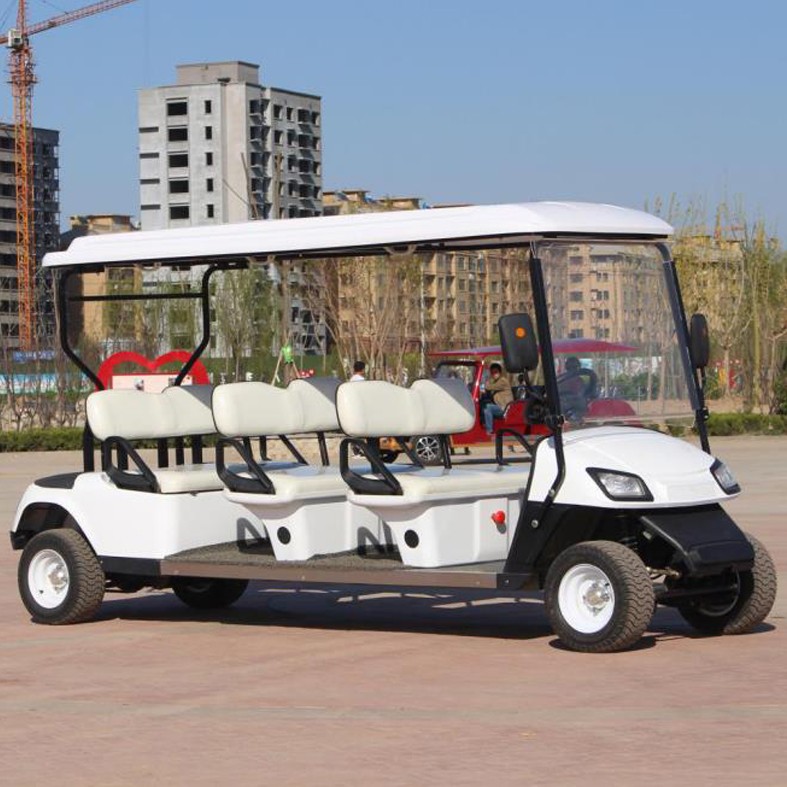

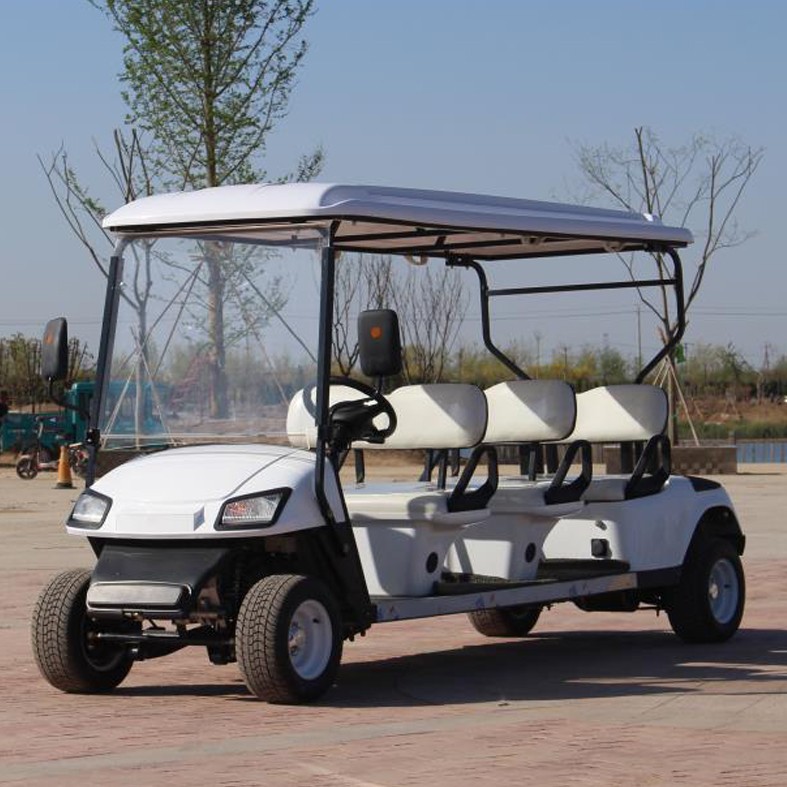

Six seat sightseeing golf electric vehicle
  • Six seat sightseeing golf electric vehicle - 0 Six seat sightseeing golf electric vehicle - 0
  • Six seat sightseeing golf electric vehicle - 1 Six seat sightseeing golf electric vehicle - 1
  • Six seat sightseeing golf electric vehicle - 2 Six seat sightseeing golf electric vehicle - 2
  • Six seat sightseeing golf electric vehicle - 3 Six seat sightseeing golf electric vehicle - 3
  • Six seat sightseeing golf electric vehicle - 4 Six seat sightseeing golf electric vehicle - 4

Six seat sightseeing golf electric vehicle

This is a Six seat sightseeing golf electric vehicle, which is specially developed for the golf course. The car has low chassis, convenient up and down, small turning radius and flexible operation. Vacuum wide tire and compound front suspension system are adopted, which has excellent shock absorption performance, smooth driving and comfortable driving. The plate spring design is used for the whole vehicle, with small load and high rebound performance. We are committed to the R & D, manufacturing and sales of electric sanitation vehicles for many years, deeply ploughing the Chinese market and covering most markets in Europe and Southeast Asia. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description


Six seat sightseeing golf electric vehicle presentation

This six seater electric golf course car uses McPherson independent front suspension on the front axle and rear axle. The suspension can increase the space in the cab and improve the handling stability of the whole vehicle. The steering wheel height and inclination are adjustable, with instrument monitoring system. Red instrument panel transmission lighting, speedometer with electronic pulse sensor, integral control combination instrument, equipped with multi-function indicator.

Product parameters

Electrial System
Controller 72V Inbol intelligent controller
Storage Battery 12V*6PCS,100AH
Battey charge Vehicle-mounted intelligent charger
Charger Voltage Single phase,220V
Motor Hanpuda 3500W alternator
Endurance Mileage 90-120km
Charging Time 8-10Hours
Gw 500 KGS
Technicial Data
Overall Size 3900*1200*1850mm(L*W*H)
Max.Passenger 6 People
Max.Speed 20-30km/h
Full Loading Gradeability 25%
Wheel Base 1650  MM
Body Material plastic
Chassis Materia Metal
Braking Length ≤4 Meters
Min.Turning Tadius 3500  MM
Front and Rear Tracks 870/870 MM
Car Body Systen
Seat Material Imitation leather (PU)
Instrument Panel Combined instrument(front/back signallight trumpet,dump energycurrent speed display)
Lighting System Combined type front light and back light,braking light front/back turning light
Switch System Light switch,main power switch,electric horn,wiper switch.
Entertainment System MP3 Player.
Car Body Painting Color can be customized.
Chassis System
Drive System Rear-drive motor;Controller adjusted automatically
Steering System Automatic adjustment rack and pinion direction
Braking System Four wheel hydraulic brake +double circuit hydraulic brake +parking brake device +brake assist
Tire Details 205-50-10,Aluminium wheel hub,vacuum tire
Front Axle and Suspension Integral front bridge suspension
Back Axle and Suspension Integral front bridge suspension

Product features and applications

This six seat electric golf course car is a high comfort course car. Compared with ordinary sightseeing cars, the whole car adopts three-dimensional simulation design and is designed according to ergonomics to make passengers feel more comfortable. The stability of the accelerator pedal of this model enables self driving tourists to control the vehicle quickly. It is used in golf courses, resorts, villas, Garden hotels, scenic spots and other places. From golf courses, villas, hotels, schools to private users, they will be short-distance transportation.

Product details




Company size



Delivery of shipments and services



FAQ

Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.

Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.

Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.

Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).

Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.

Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).

Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).

Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.

Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.

Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.

Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
