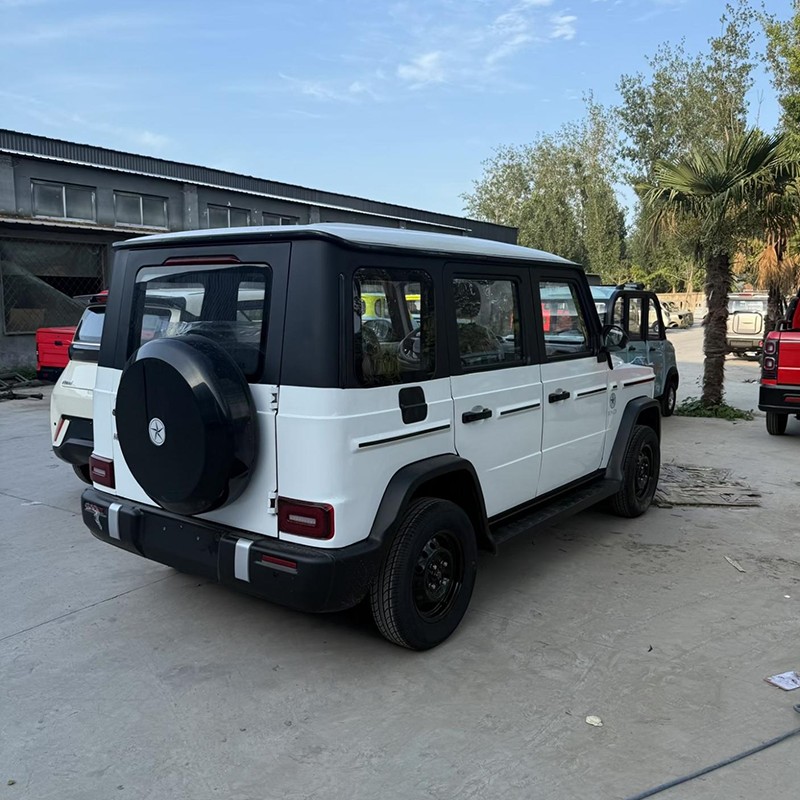

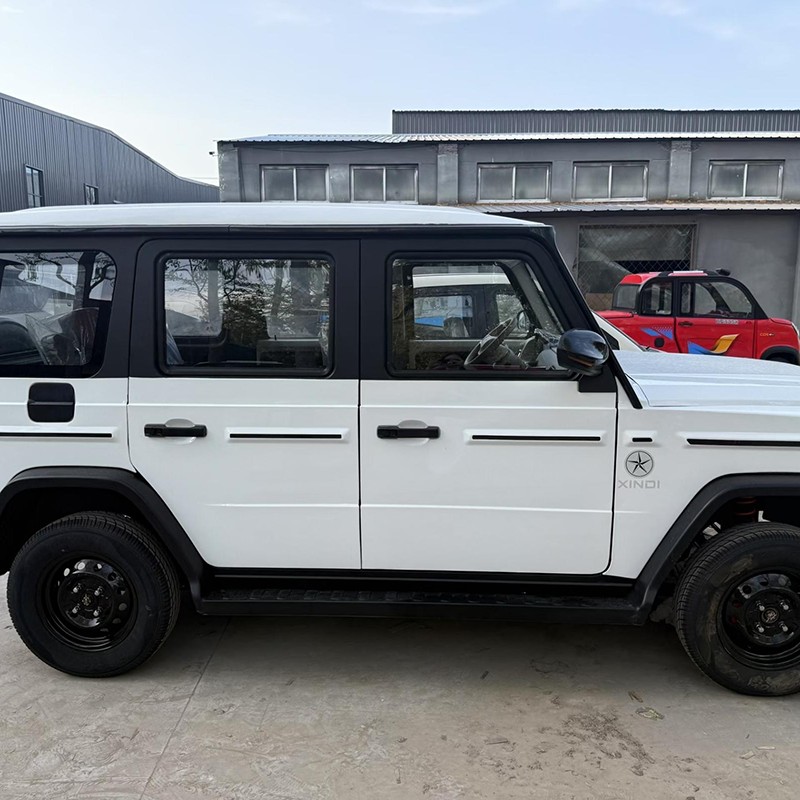

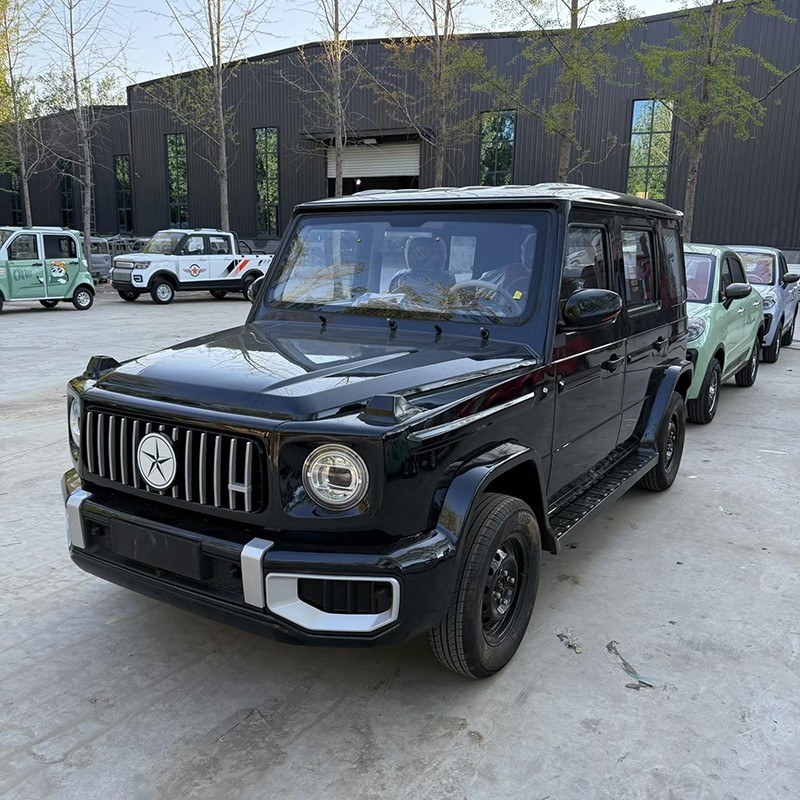

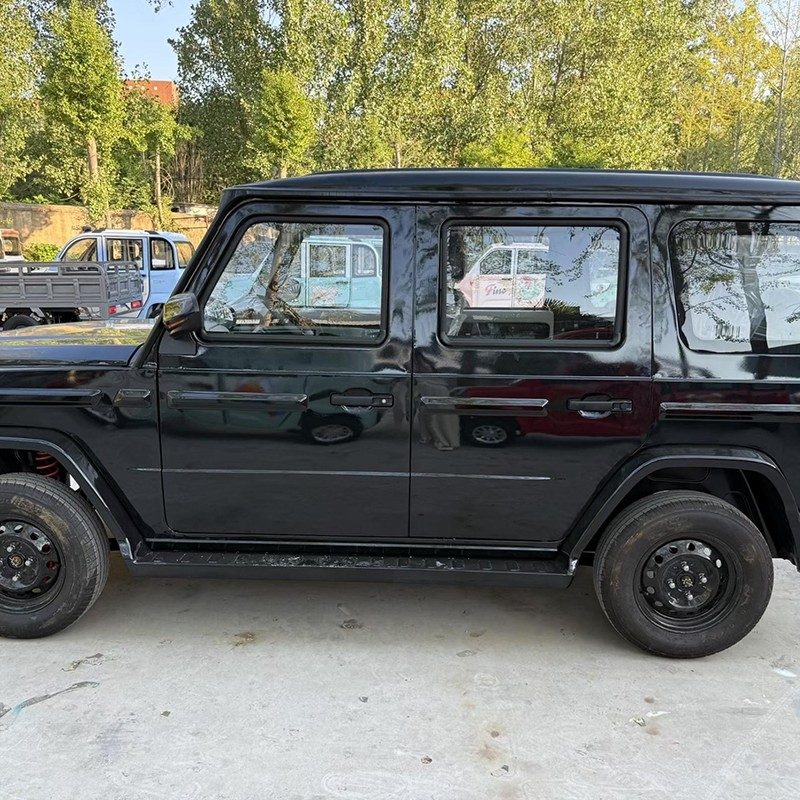

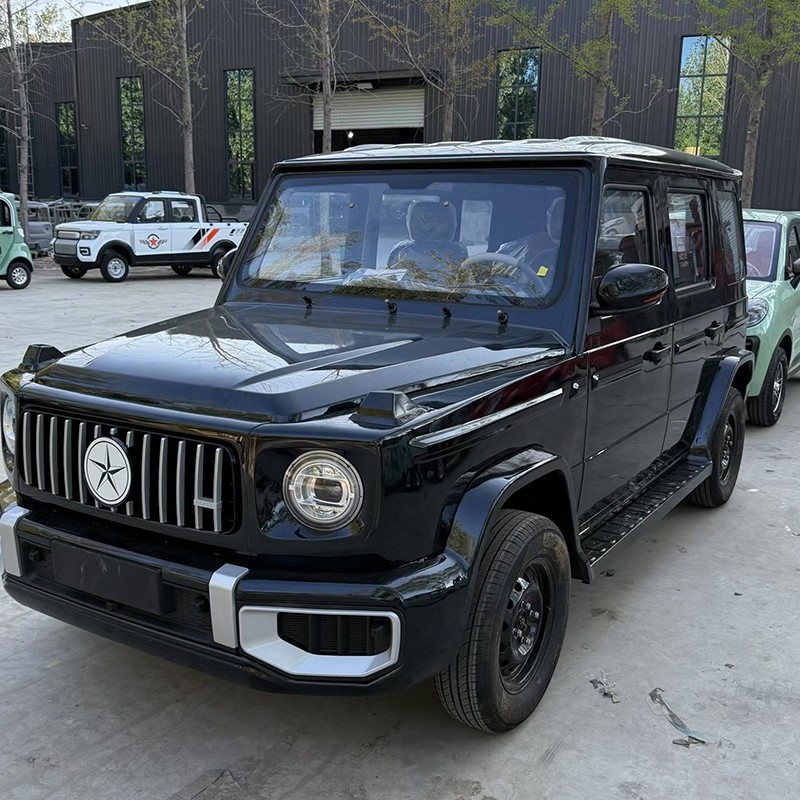

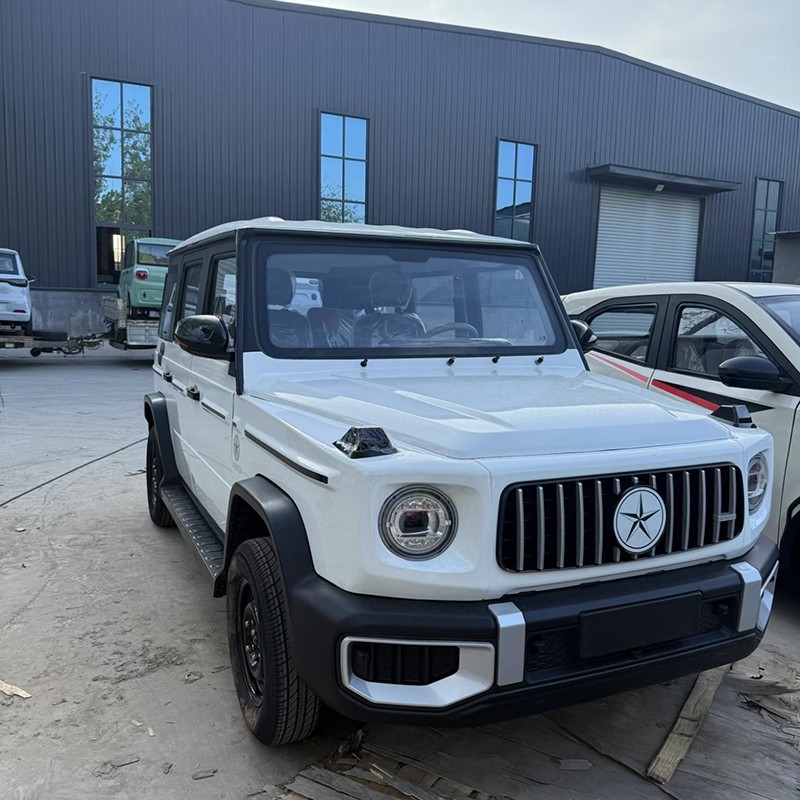

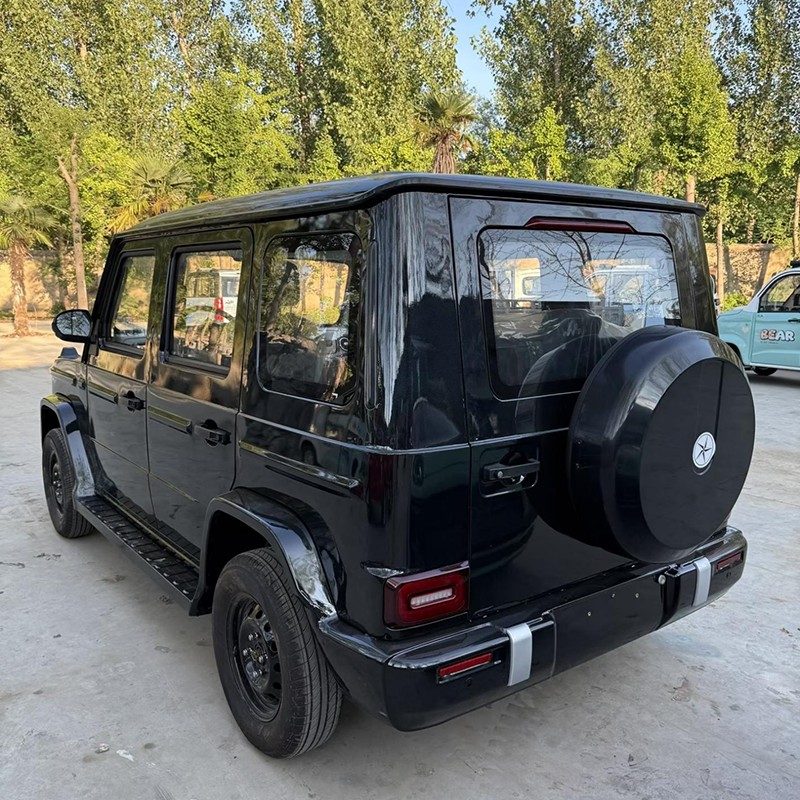

Electric off-road vehicle

The appearance and functions of electric off-road vehicles can be customized, and a fuel system can be added. The battery can choose maintenance free lead-acid batteries or lithium batteries.

Send Inquiry

Product Description
Electric off-road vehicles are not only suitable for highway driving, but also a sturdy vehicle used for towing vehicles and off-road driving. They are also fundamentally changing the way outdoor work and entertainment are done.

Electric off-road vehicles run quietly, have low fuel consumption, and low maintenance costs, making them the ultimate choice for outdoor adventures. No matter what kind of experience you need, there are options that suit you, including towing, off-road, and outdoor activities. We regularly hold events to keep you updated on the latest vehicles, innovative technologies, and economic incentives, and provide guides for purchasing and driving electric vehicles. In the past decade, the tram market has experienced a wave of vehicle models being launched, and electric off-road vehicles have also become a focus of attention for manufacturers.

Using 185 vacuum tires, with dedicated gear shifting and climbing gears, anti-collision steel beams, integrated chassis, and intelligent sensing radar, it achieves durability and a strong sense of safety.
2. Each wheel of the electric off-road vehicle is equipped with an independent motor, which can achieve functions such as crab walking, tank turning, and low-speed climbing
3. The operation of electric motors is quieter than internal combustion engines, which can reduce noise pollution to the natural environment and have a positive impact on the earth.
4. The independent chassis system gives it strong body rigidity and torsional resistance
5. Aluminum alloy roof integrated luggage rack greatly expands loading space
6. The electronic power steering system makes the steering light and flexible, improving the driving experience and comfort
7. The shock absorption and anti-collision dual brake system has high safety. 8. It is equipped with a set of vehicle tool kits specially designed for off-road vehicles, which have strong self rescue capabilities and can get rid of difficulties
Number Configuration Name Specific parameters
1 Vehicleparameters Vehicle Model
2 Body Type Four doors and five seats
3 Length*Width*Height 3300mm*1650mm*1700mm
4 Body material Stainless steel
5 Top speed 50km/h
6 Speed Shifting System Continuously variable speed
7 Range 80-100km
8 Tire specifications 185
9 Vehicle quality 450kg
10 Gradeability 30 degrees
11 Front and rear wheel track 1950
12 Minimum ground clearance 180mm
13
Braking distance Less than 5 meters
14 Minimum turning radius 6m
15
Multi-function steeringwheel Steering wheel/handle
16 Powertrain Motor Type 3500W
17 Motor power 60V4000W
18 Power battery type Maintenance-free lead-acidbattery/lithium battery
19 Power battery parameters 60V100Ah-180Ah
20 Drive system Rear-engine, rear-wheel drive
21 Climbing system Special gear shift climbing gear
22 Wire system Flame retardant copper wire for the wholevehicle
23 switch Knob switch
24 Steeringsystem Power steering system Electronic power steering system
25 Brakingsystem Dual brakes Foot brake or hand brake, double brakesystem
26 Braking method Rear brake disc
27 Suspension Suspension type Bridge system
28 ShockAbsorptionSystem Front vehicle shockabsorber Integrated front axle + shock absorberspring, one rear front axle + shockabsorber spring
29 CollisionAvoidanceSystem Anti-collision method Anti-collision steel beam
30 Chassissystem Independent chassis Combined chassis
31 ChargingSystem Vehicle Charger Smart Car Charger
32
Central control touchscreen 4.3-inch screen
33 Reversing radar Intelligent sensor radar
34 VersatileConfiguration Reversing Image Automatic sensing reversing image
35 USBMultimedia USB port 1 or more
36 Central door lock Electric door locks
37 Four door and window lifts Manual lift door
38 AI intelligent voice interconnection system Optional AI intelligent swap
39 Air conditioning system Good cooling and heating, and fans can beconfigured as desired

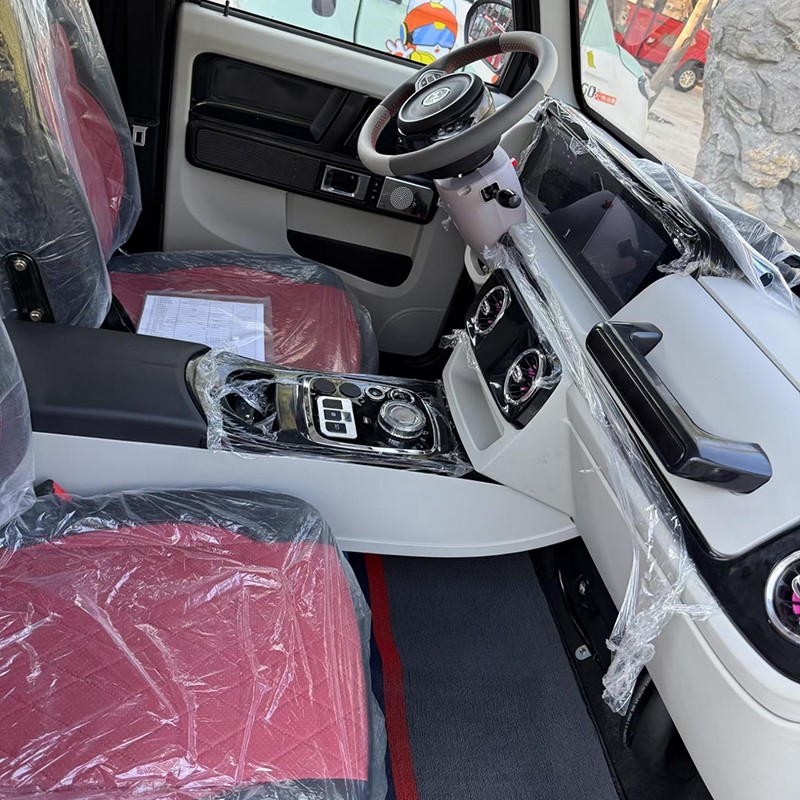

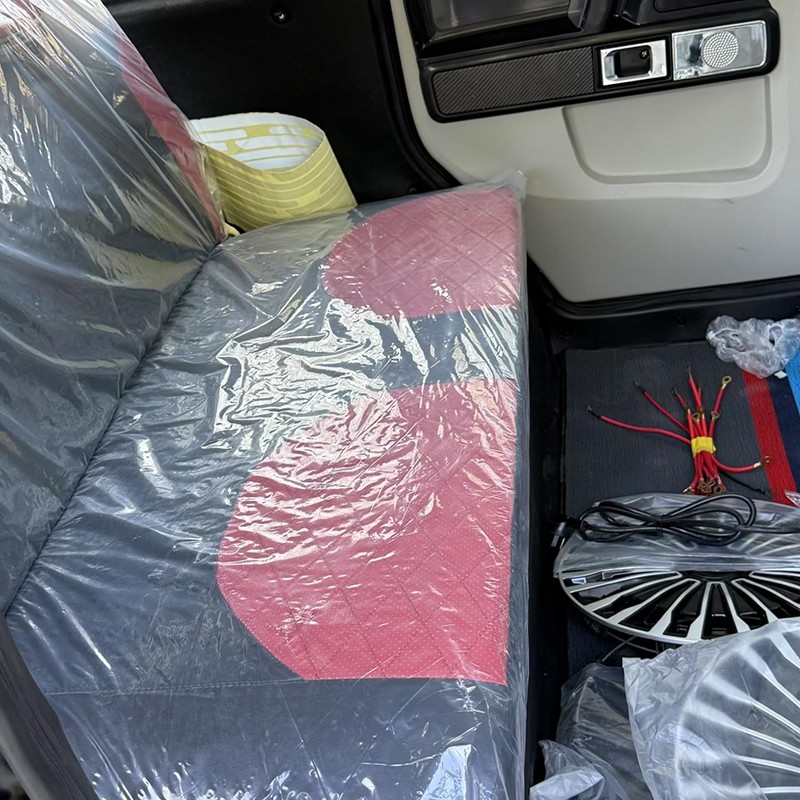

40 Seats High-end seats
41 Car floor Imitation leather
42 Glass lifting system Hand crank glass
43 Vehicle headlights LED high and low headlights, roofsearchlight
44 Wiper system Single wiper
45 Handrail Standard handrail
46 Luggage rack Aluminum alloy roof integrated luggagerack
47 Interior sun visor Sun Visor
48 Vehicle tool kit Professional tool kit
49 vehicle body Body material level Automotive grade body
50 Body material Steel Plate
51 Body color White, black, red, green, blue, customized color
Remark The appearance of the vehicle can be customized, the functions of the vehicle canbe customized, a fuel system can be added to the vehicle, and the battery can be amaintenance-free lead-acid battery or a lithium battery.
